Palm Chemical Detector 100

share
WeChat
Sina Weibo
QQ
QQ space
Douban
Baidu Post Bar
• Brand Spectrum Guard
• Model PALM-100
• Technology Raman spectroscopy
• Description Scan of the surface allows identification of the sample
• Substance detected Explosives & flammable, narcotics & precursor chemicals, new psychoactive substances (NPS), toxic substances, drugs and mixtures
• Sampling Connected with phone via Bluetooth
Detail

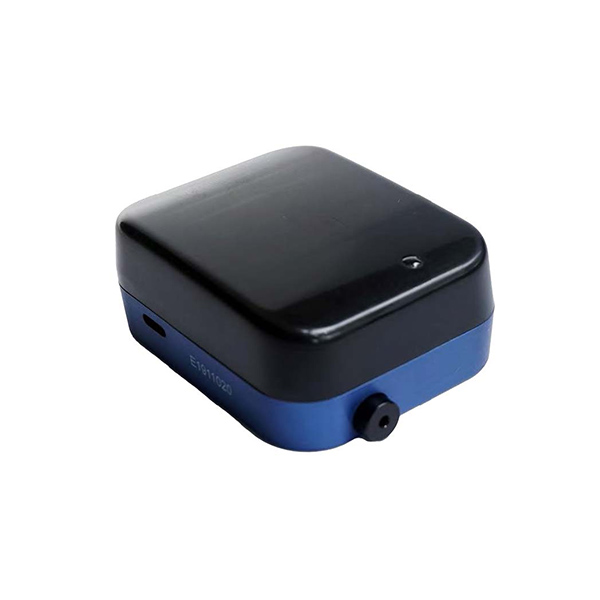

Spectrum Guard® Palm Chemical Detector PALM-100 (thereafter Spectrum Guard PALM-100) is super miniature chemical detector newly developed by Suzhou Weimu Intelligent System Co., Ltd. Principled by Raman Spectrometry Scattering, it can detect explosives & flammable, narcotics & precursor chemicals, new psychoactive substances (NPS), toxic substances, drugs and mixtures in a rapid and efficient way. It is applicable to different scenarios including security inspection, narcotics detection, drug detection, chemical identification and etc.

Spectrum Guard®PALM-100 is the smallest Raman Spectrometry detector on market now with the weight of 118g and the size as small as a car key. The battery is built-in and can sustain 5-hour detection in a row. By connected to phone via Bluetooth, it requires no waiting time for warm-up after power on. Putting the sample port close to suspicious subject and one button click on the phone can realize smart detection displaying detailed substance information. Library is upgradable and users can also add to library.


Features

  • Small size, light weight and wearable；

  • Smart operation on phone APP, easy and convenient to use；

  • Raman Spectrometry detection principle, no consumable, no damage and no waiting time；

  • Various detection substances as many as 200 kinds, including explosives & flammable, narcotics & precursor chemicals, new psychoactive substances (NPS), toxic substances, drugs and mixtures et al；

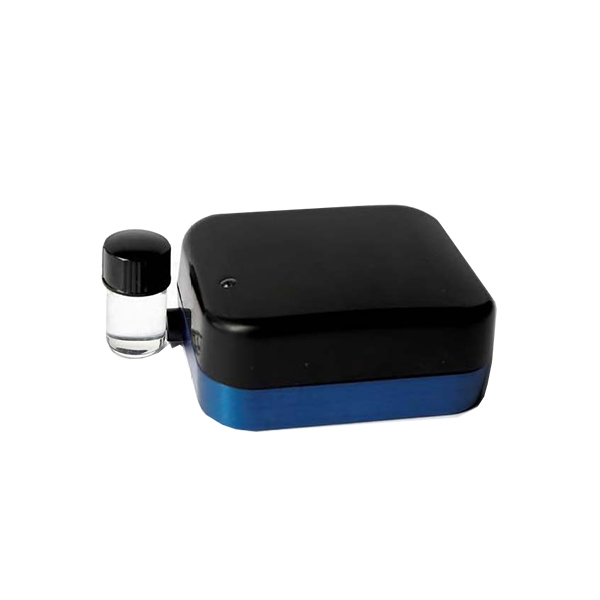

  • Detection of substance in varied states, solid, powder, and liquid；

  • Continuous detection as long as 5 hours；

  • Online upgradable library and supportive of addition on users’ end；

  • Detection report can be downloaded with detailed measurement information；

  • Software auto update and more convenient for after-sales issues

Operations

LED light is built-in, blue stands for Bluetooth connected, red detecting, green full charged.

1. Open phone APP and Bluetooth, press Bluetooth icon at the left bottom of the page. Connect the one with the serial number engraved on the side body of the device and blue light will be on then.

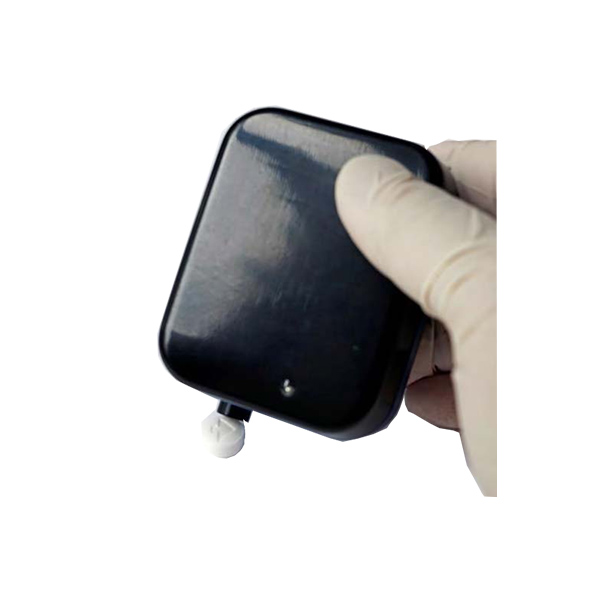

2. Set the standard sample (Polystyrene) to the Sample Port of the sensor and long press Start button to set up calibration.

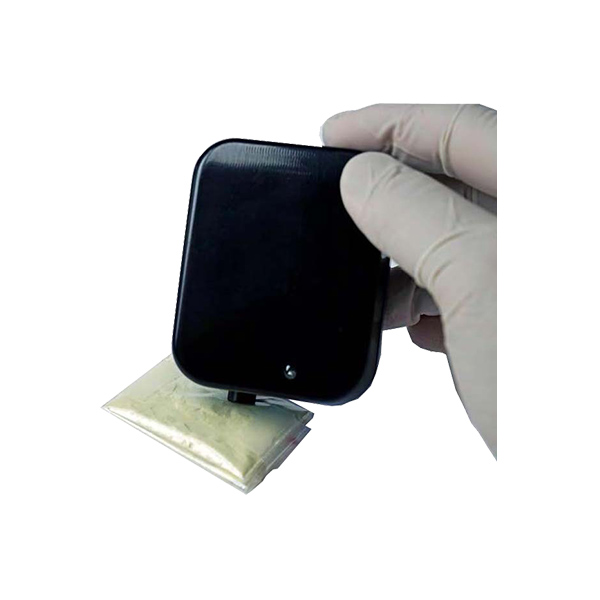

3. Set the sample to the Sample Port of the sensor and press Start button to start a measurement. Wait for the measurement to complete. The substance name, spectrum, matching value, CAS number and etc. will appear on the screen.

4. Press … button on the right upper page and you can find previous measurement records, save measurement reports and add new substance to library. Measurement report will record result, time, place and pictures uploaded.



Note：The information on this website contains general descriptions of products and services. Suzhou Weimu reserves the right to change specifications without notifications.
